蘇家屯區巨力吊裝帶批發價供應，蘇家屯區巨某建筑工司在我公司訂購的卸扣投入使用，后反饋消息說，使用方便、便捷，提高工作效率，節約了時間，加大工期提前完成的速度。歡迎有需求的企業和個人前來選購，訂購電話：0311-66697169
蘇家屯區巨力吊裝帶現貨供應
蘇家屯區巨力吊裝帶哪里有賣
蘇家屯區巨力吊裝帶廠家直銷
蘇家屯區巨力吊裝帶價格是多少
ZL 2006 3 0000331.1

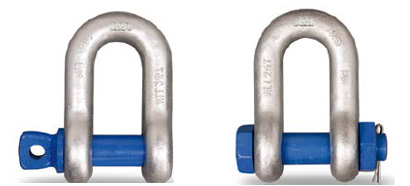

產品參數
| 產品型號 | 額定載荷 (t) | W (mm) | D (mm) | d (mm) | E (mm) | P (mm) | S (mm) | L(DW 型) (mm) | 自重(DW 型) (kg) |
| S-DW0.5-1/4 | 0.5 | 12 | 8 | 6.5 | 15.5 | 6.5 | 22 | 36.5 | 0.04 |
| S-DW0.75-5/16 | 0.75 | 13.5 | 10 | 8 | 19 | 8 | 26 | 44.5 | 0.08 |
| S-DW1-3/8 | 1 | 17 | 12 | 9.5 | 23 | 9.5 | 32 | 52.5 | 0.13 |
| S-DW1.5-7/16 | 1.5 | 19 | 14 | 11 | 27 | 11 | 36.5 | 62 | 0.2 |
| S-DW2-1/2 | 2 | 20.5 | 16 | 13 | 30 | 13 | 41.5 | 70.5 | 0.27 |
| S-DW3.25-5/8 | 3.25 | 27 | 20 | 16 | 38 | 16 | 51 | 88 | 0.57 |
| S-DW4.75-3/4 | 4.75 | 32 | 22 | 19 | 46 | 20.5 | 60.5 | 102.5 | 0.99 |
| S-DW6.5-7/8 | 6.5 | 36.5 | 27 | 22.5 | 53 | 24.5 | 71.5 | 121 | 1.57 |
| S-DW8.5-1 | 8.5 | 43 | 30 | 25.5 | 60.5 | 25.5 | 81 | 139 | 2.3 |
| S-DW9.5-1 1/8 | 9.5 | 46 | 33 | 29 | 68.5 | 32 | 91 | 153 | 3.42 |
| S-DW12-1 1/4 | 12 | 51.5 | 36 | 32 | 76 | 35 | 100 | 168.5 | 4.48 |
| S-DW13.5-1 3/8 | 13.5 | 57 | 39 | 35 | 84 | 38 | 111 | 184.5 | 6.46 |
| S-DW17-1 1/2 | 17 | 60.5 | 42 | 38 | 92 | 41 | 122 | 199 | 7.65 |
| S-DW25-1 3/4 | 25 | 73 | 52 | 44.5 | 106.5 | 54 | 146 | 244 | 12.48 |
| S-DW35-2 | 35 | 82.5 | 60 | 51 | 122 | 51 | 171.5 | 275 | 18.63 |
| S-DW55-2 1/2 | 55 | 105 | 72 | 66.5 | 144.5 | 66.5 | 203 | 346 | 36.02 |
| 產品型號 | 額定載荷 (t) | W (mm) | D (mm) | d (mm) | E (mm) | P (mm) | S (mm) | L(DX 型) (mm) | 自重(DX 型) (kg) |
| S-DX0.5-1/4 | 0.5 | 12 | 8 | 6.5 | 15.5 | 6.5 | 22 | 37 | 0.06 |
| S-DX0.75-5/16 | 0.75 | 13.5 | 10 | 8 | 19 | 8 | 26 | 45 | 0.1 |
| S-DX1-3/8 | 1 | 17 | 12 | 9.5 | 23 | 9.5 | 32 | 54 | 0.13 |
| S-DX1.5-7/16 | 1.5 | 19 | 14 | 11 | 27 | 11 | 36.5 | 62 | 0.21 |
| S-DX2-1/2 | 2 | 20.5 | 16 | 13 | 30 | 13 | 41.5 | 71.5 | 0.28 |
| S-DX3.25-5/8 | 3.25 | 27 | 20 | 16 | 38 | 16 | 51 | 89 | 0.6 |
| S-DX4.75-3/4 | 4.75 | 32 | 22 | 19 | 46 | 20.5 | 60.5 | 105 | 1.04 |
| S-DX6.5-7/8 | 6.5 | 36.5 | 27 | 22.5 | 53 | 24.5 | 71.5 | 121 | 1.63 |
| S-DX8.5-1 | 8.5 | 43 | 30 | 25.5 | 60.5 | 25.5 | 81 | 136.5 | 2.38 |
| S-DX9.5-1 1/8 | 9.5 | 46 | 33 | 29 | 68.5 | 32 | 91 | 149.5 | 3.59 |
| S-DX12-1 1/4 | 12 | 51.5 | 36 | 32 | 76 | 35 | 100 | 164.5 | 4.65 |
| S-DX13.5-1 3/8 | 13.5 | 57 | 39 | 35 | 84 | 38 | 111 | 179 | 6.71 |
| S-DX17-1 1/2 | 17 | 60.5 | 42 | 38 | 92 | 41 | 122 | 194.5 | 8.05 |
| S-DX25-1 3/4 | 25 | 73 | 52 | 44.5 | 106.5 | 54 | 146 | 239 | 13.18 |
| S-DX35-2 | 35 | 82.5 | 60 | 51 | 122 | 51 | 171.5 | 269 | 19.3 |
| S-DX55-2 1/2 | 55 | 105 | 72 | 66.5 | 144.5 | 66.5 | 203 | 344 | 37.22 |
| S-DX85-3 | 85 | 127 | 85 | 76 | 165 | 89 | 216 | 401 | 65.3 |
 |
TELEPHONE 0311-85888889 |
|
電話：0311-66697169 傳真：0311-66688529 郵箱：2873282030@qq.com 網址：http://jingjingzixun.com/ 地址：河北省保定市徐水巨力工業園 |
